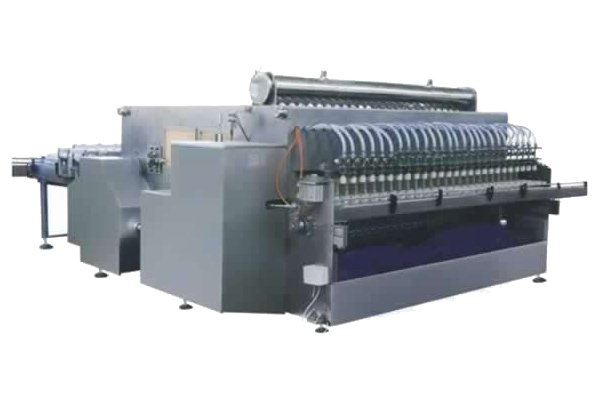

All in One Bottle Washing and Filling Machine

All in One Bottle Washing and Filling Machine

The all in one bottle washing and filling machines are widely used for cleaning and filling of 50 ml, 100 ml, 250 ml and 500 ml IV solution glass bottles as well as similar bottles.

Request a Quote
Performance Characteristics
  • Thanks to its compact structure, the all in one bottle washing and filling machine is space efficient and just occupies a small floor area.
  • Integrating mechanics, electronics and pneumatics technologies, the bottle washing and filling equipment achieves a high degree of automation. It enables users to set the water pressure and time of flushing according to their actual demand. The flushing water at each stage is recycled and filtered for downgrade usage, contributing to low water consumption.
  • The machine uses crawler to carry bottles. Due to the adoption of intermittent rinsing style, cross contamination caused by continuous rinsing is eliminated.
  • The bottle hook, together with guide plate, ensures smooth, reliable bottle entering without bottle collapse or overturn phenomenon.
  • During exiting process, those bottles are received twice as there is a support to slightly receive bottles first for buffer purpose. This ensures no bottle collapse and breakage due to long falling distance.
  • After fine cleaning, the bottles immediately enter the filling station. This avoids the pollution caused due to long distance delivery of bottles.
  • The filling machine adopts preset filling time and constant flow technique. The filling time and filling quantity are adjustable by the computer. Accurate measurement is achieved.
  • The conveyor is on the side of the all in one bottle washing and filling machine, which contributes to convenient maintenance and repair.
Main Technical Parameters
Model QJG12 QJG20 QJG26 QJG30
Applicable size 50 ml, 100 ml, 250 ml, 500 ml 50 ml, 100 ml, 250 ml
Capacity 80-200 bottle/min 200-300 bottle/min 300-400 bottle/min 300-450 bottle/min
Number of bottles can be entered each time 12 20 26 30
Filling heads 12 20 26 30
Metering error ±1.5 % (standard container)
Electric capacity 5.5 kW 6 kW 6 kW 6 kW
Compressed air consumption 1.2 m³/h (0.6MPa) 2.0 m³/h (0.6MPa) 2.6 m³/h (0.6MPa) 3 m³/h (0.6MPa)
Water consumption Purified water: 80 ml/bottle injection water: 100 ml/bottle 0.2 MPa
Outer dimension (mm) 4275X2838
X1600 		3850X3920
X1600 		3850X4520
X1600 		3850X4550
X1600
Note: In the above table, the capacity is inversely proportional to the bottle size. Hence, the bigger the bottle size, the lower the capacity. The specific details are correct based on the tender documents.

As a professional all in one bottle washing and filling machine manufacturer in China, we provide not only glass bottle IV solution production line, but also ampoule washing, drying, filling and sealing machine, co-extrusion non-PVC IV bag film production line, and more.
