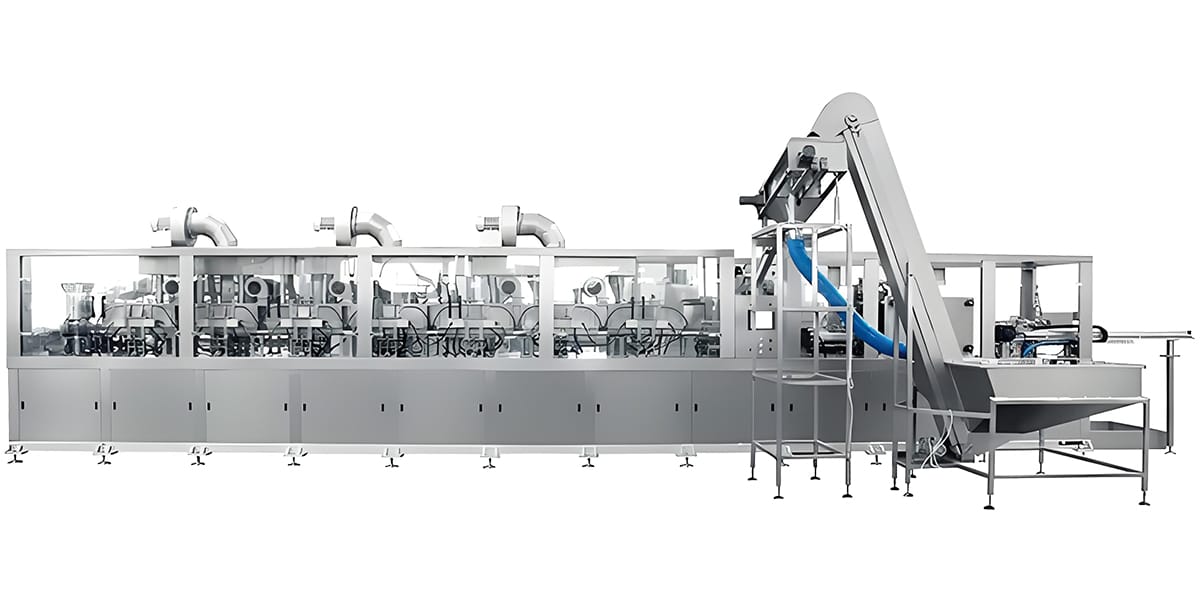

The XGF plastic bottle IV solution washing, filling and sealing production line mainly consists of three sections, including ionic wind washing or ionic wind and water washing section, constant pressure filling section and hotmelt sealing section. It can automatically complete procedures like bottle loading, bottle feeding and bottle turning by manipulator, ionic wind washing, bottle conveying, fixed quantity filling, cap collating, capping, simultaneously heating of cap and bottleneck, air eliminating, hotmelt sealing, bottle discharging, etc. This production line is primarily used for the production of both soft and hard PP plastic bottle IV solution.

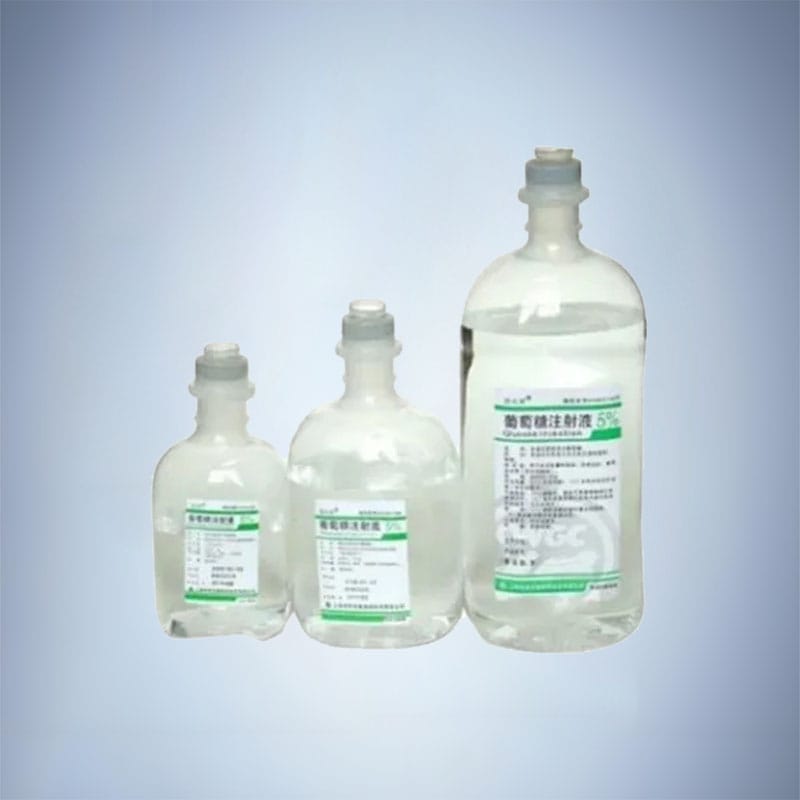

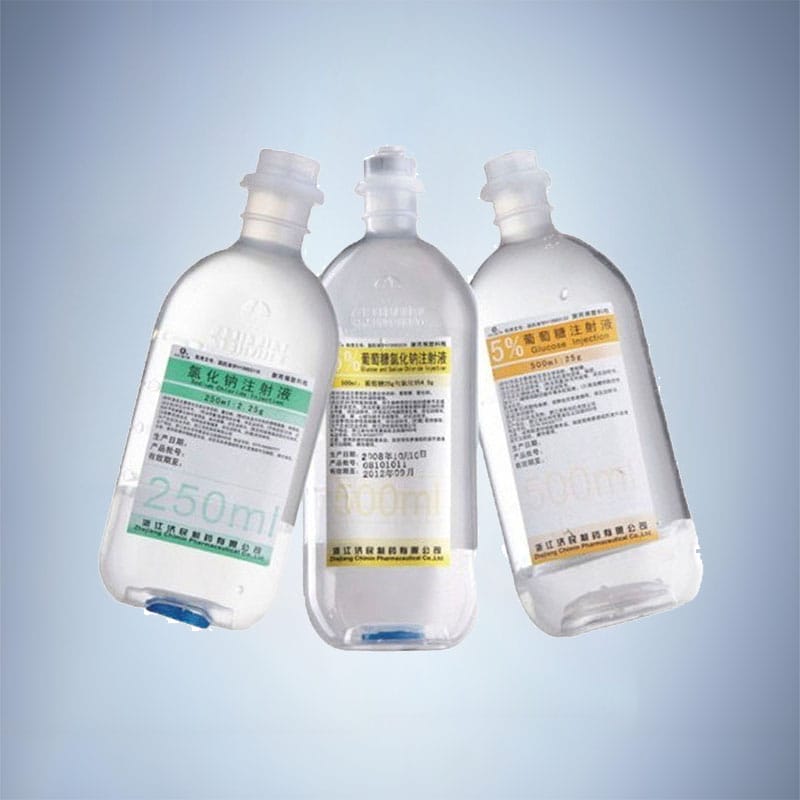

Bottle Specification 50~500 ml round or irregular shaped plastic bottles
Production Capacity 2000~20000 bottles/hour
| Production Capacity | 2000~20000 bottles/hour |
| Bottle Specification | 50~500 ml round or irregular shaped plastic bottles |
| Bottle Washing | ionic wind blowing |
| Quantity of Washing | 20~60 |
| Quantity of Filling | 18~48 |
| Quantity of Sealing | 20~60 |
| Main Filling Medium | large volume infusion solution and other liquids |
| Filling Error | ±1.5% |
| Liquid Temperature and Pressure | 40~55℃ 0.6~2 kg/cm² |
| CIP/ SIP | 125℃, 30 min |
| Gas Consumption (clean air) | Pressure: 0.6~0.8 Mpa 180(120) m³/h |
| Cooling Water | 250 L/h, 15~20℃ |
| Noise | max. 75 dB |
| Electric Capacity | 18~35 kW |

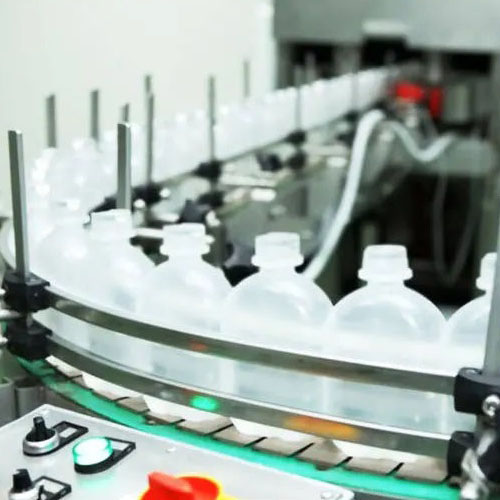

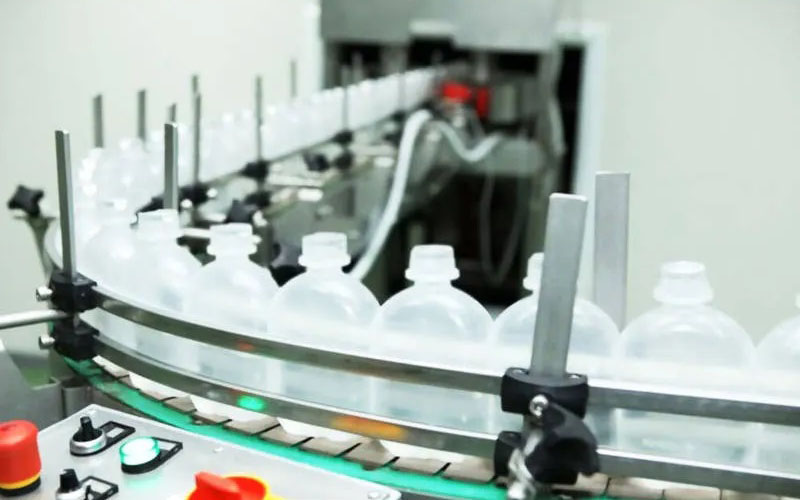

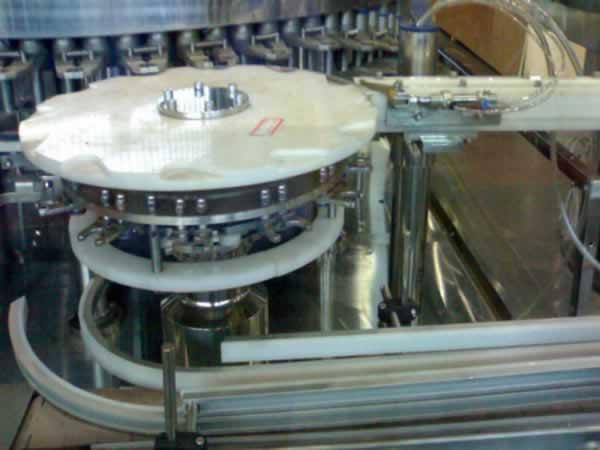

The conveying track and star wheel are directly connected. The clean compressed air helps accelerate the feeding speed.

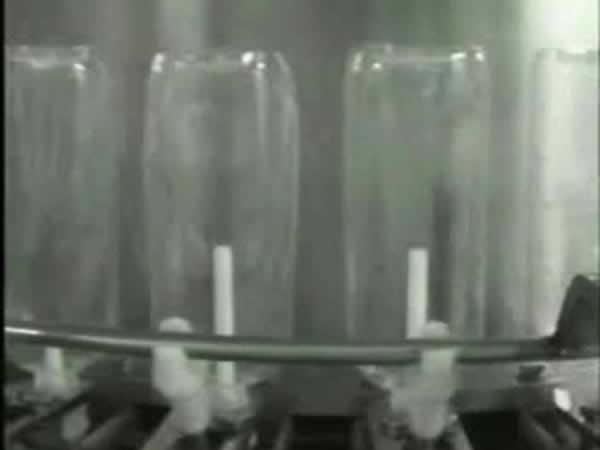

If there is no bottle in this station, it will automatically cut off the air and power source of the ionic air gun.

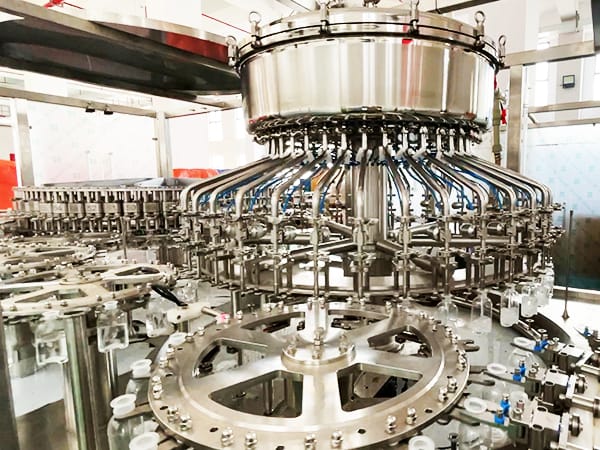

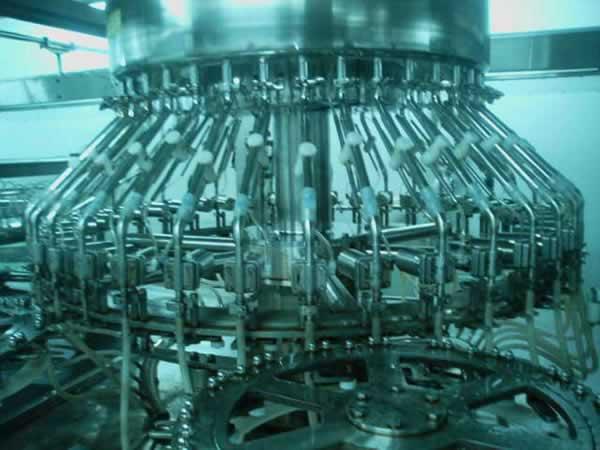

It incorporates constant pressure filling technique and world renowned brand filling valves. Each filling nozzle is equipped with a filling pipe to realize CIP and SIP.

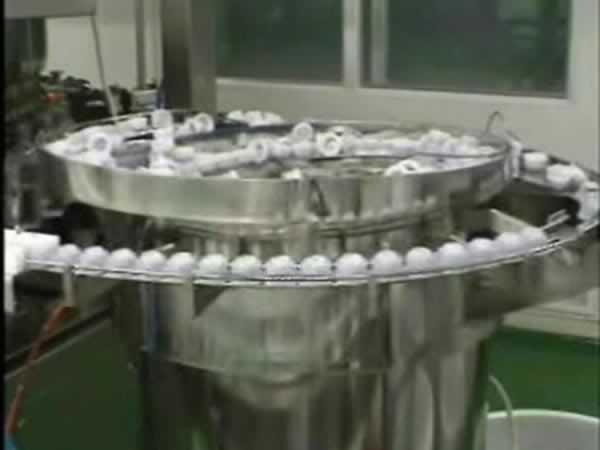

It collates bottle caps based on the electromagnetic resonance principle. It will automatically stop when there is no bottle.

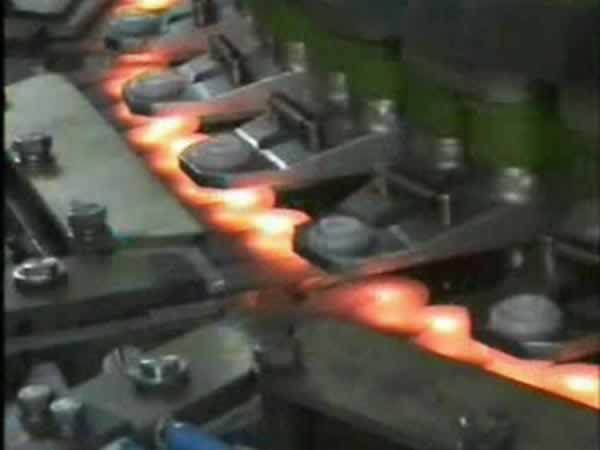

It seals by heating continuously and rapid pressing, which ensures good quality and smooth sealing. The heating part consists of two layers respectively used for bottle heating and cap heating. Heating temperature and time are adjustable.

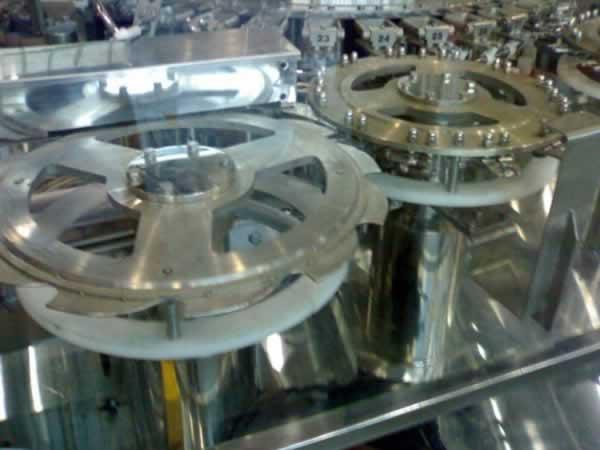

After cap welding, the bottles are delivered to bottle discharging track by star wheel. When manipulator is open, the discharging track will take away bottles.

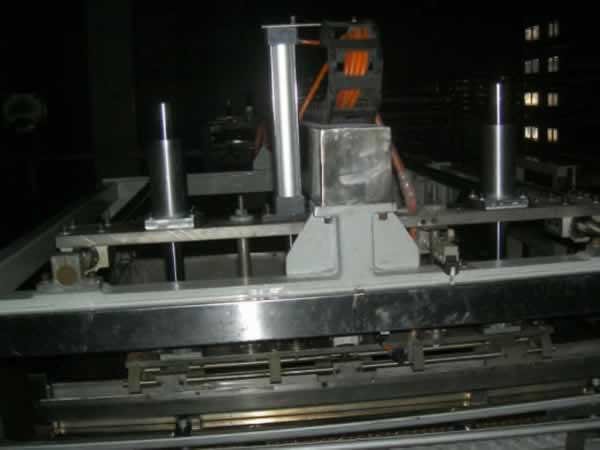

It consists of a manipulator used to place plastic bottles in sterilizing trays.
It is used to unload the bottles from the sterilizing trays to the delivery track.

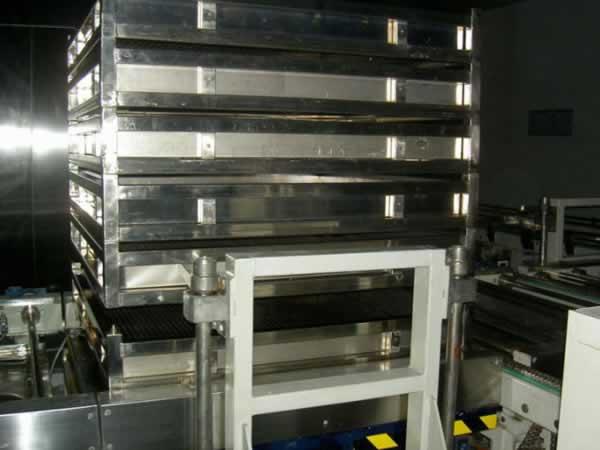

It is mainly used to remove sterilizing trays from the sterilization cycle system and pile them up.
