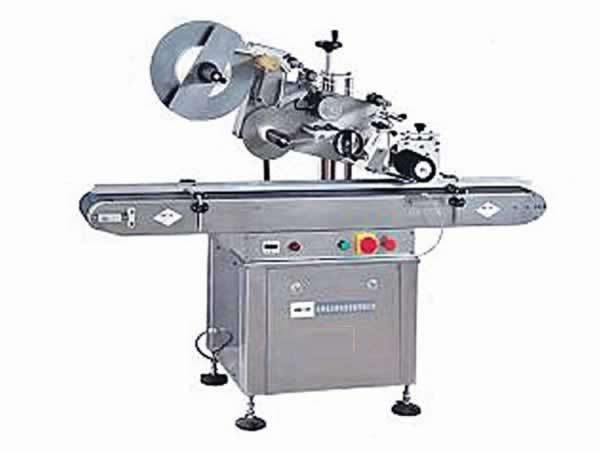

The TN50/500 plastic bottle labelling machine is suitable for sticking the labels on to the surface of rectangular plastic bottles. It can perform processes such as bottle conveying, label tape sending, synchronous separation of labels, labeling, and batch number printing. The label feeding and labeling are controlled by PLC. The label feeding is driven by induction stepper motor, making labeling more accurate and stable. The bottle labelling machine offers high efficiency and good labeling quality. It will not perform label delivering, labeling operations when there is no bottle.
| Production Capacity | 3600-10000 bottles/hour |
| Bottle Specification | 100-500ml rectangular plastic bottle |
| Labeled Paper Roll Specification | adopts self adhesive label roll with diameter no less than 300 mm and width no less than 120 mm. |
| Paper Specification | Length: 30-100mm, width: 30-100mm |
| Gross Power | 300W, 220V, 50Hz |
| Overall Size | 1900mm×510mm×1550mm |
As a professional plastic bottle labelling machine manufacturer in China, we provide not only plastic bottle IV solution washing, filling and sealing production line, but also co-extrusion non-PVC IV bag film production line, glass vial washing, drying, filling and sealing machine, and more.
We ensure strict quality control for pharmaceutical machinery, complying with ISO9001:2008 and adhering to cGMP, European GMP, US FDA GMP, and WHO GMP standards.
Our equipment is designed to meet diverse production needs, including non-PVC soft bag, PP bottle, and glass bottle IV production lines, as well as automatic ampoule and vial washing, filling, and sealing systems. We also offer solutions for oral liquid processing, dialysis fluid filling, and pre-filled syringe filling and sealing.
