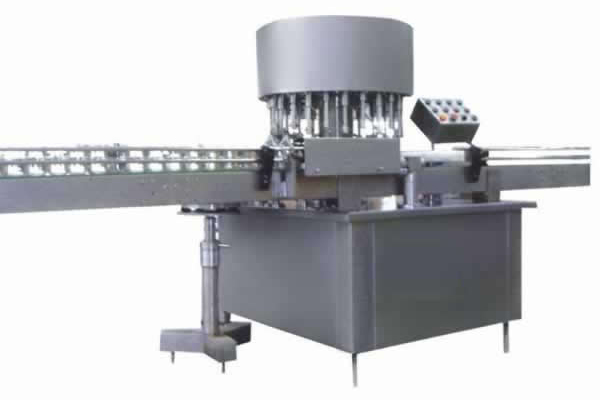

The glass bottle stoppering machine is designed to perform T shape rubber stopper adding and stoppering operations for glass IV solution bottles. It is mainly used for 50 ml, 100 ml, 250 ml and 500 ml bottles. To make the machine flexibly adapt to bottles in different sizes, we use bottle inlet screw that adopts mobile structure and can be easily replaced with screw of different specification by only removing and installing two M8 × 25 bolts.
Our glass bottle stoppering machines are available in three models, including FS10, FS20 and FSA24. With capacities ranging from 100 to 500 bottles/min, they can meet customers' various requirements.
| Model | FS10 | FS20 | FSA24 |
| Applicable size | 50 ml, 100 ml, 250 ml, 500ml | 50 ml, 100 ml, 250 ml | |
| Capacity | 100-200 bottle/min | 200-450 bottle/min | 200-500 bottle/min |
| Stoppering heads | 10 | 20 | 24 |
| Electric capacity | 3.5 kW | 3.5 kW | 3.5 kW |
| Outer dimension (mm) | 2800X1100X1750 | 2800X1350X1750 | 2800X1350X1750 |
As a specialized glass bottle stoppering machine manufacturer in China, IVEN Pharmatech also offers nitrogen filling and stoppering machine, non-PVC infusion bag IV solution production line, and more.
We ensure strict quality control for pharmaceutical machinery, complying with ISO9001:2008 and adhering to cGMP, European GMP, US FDA GMP, and WHO GMP standards.
Our equipment is designed to meet diverse production needs, including non-PVC soft bag, PP bottle, and glass bottle IV production lines, as well as automatic ampoule and vial washing, filling, and sealing systems. We also offer solutions for oral liquid processing, dialysis fluid filling, and pre-filled syringe filling and sealing.
