Bottle Capping Machine
Request a Quote

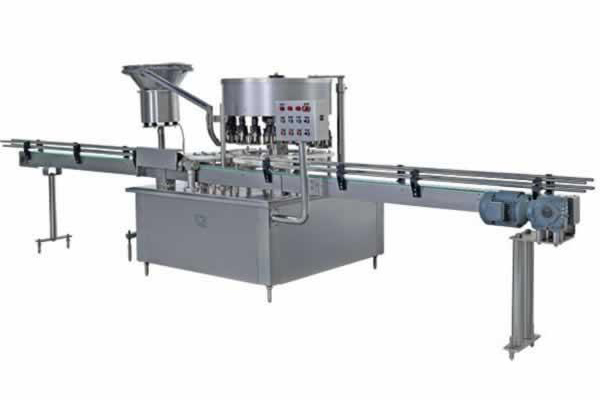

Bottle Capping Machine

Designed for IV solution bottles, the bottle capping machine is mainly used to load and roll caps, after stoppering. It uses high capacity electromagnetic oscillator to collate caps, which helps reduce labor intensity. In addition, the machine achieves high efficiency due to smooth operation and continuous bottle entering.

Our bottle capping machines use three knives to roll caps when bottlenecks are positioned and centered after cap loading. Good sealing quality is achieved. Our equipment adopts double frequency conversion control and stepless speed regulation. The knives realize soft boot with low mechanical impact force, which contributes to low breakage rate of bottles.

We are a professional bottle capping machine manufacturer in China. We also provide glass bottle stoppering machine, co-extrusion non-PVC IV bag film production line, vial labelling machine, and more.

Request a Quote
Main Technical Parameters
Model FG6 FG10 FG16 FG20
Applicable size 50 ml 100 ml 250 ml 500 ml
Capacity 20-120
bottle/min
60-200
bottle/min
200-450
bottle/min
200-600
bottle/min
Rolling heads 6 10 16 20
Electric capacity 3.0 kW 3.0 kW 4.0 kW 5.0 kW
Outer dimension (mm) 3000*1050
*1750
3000*1200
*1750
3000*1350
*1750
4000*1500
*1750
