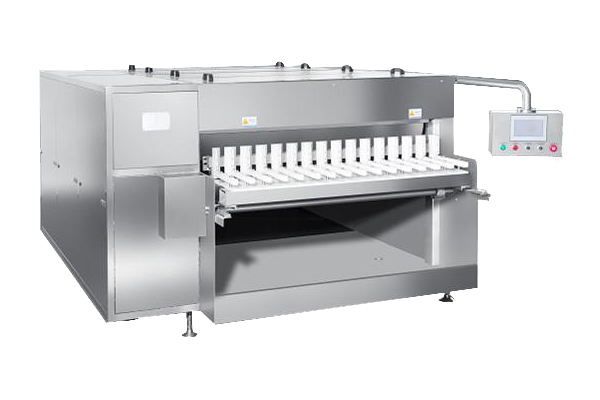

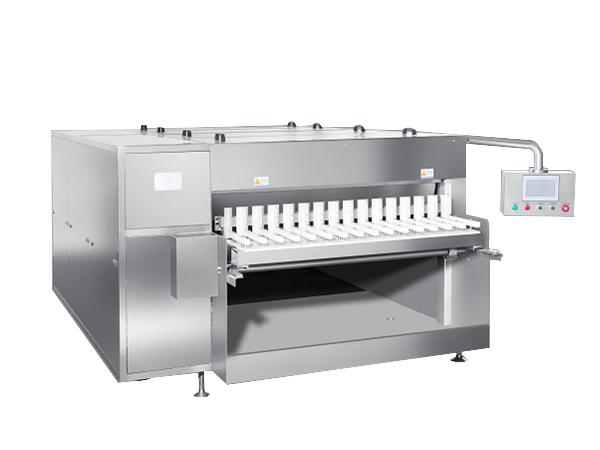

Fine Bottle Washing Machine

Fine Bottle Washing Machine

The fine bottle washing machines are compact and space saving product. They are designed for fine cleaning of 50 ml, 100 ml, 250 ml and 500 ml IV solution glass bottles. These bottle washers can also be used to clean similar bottles.

Request a Quote
Performance Characteristics
  • The fine bottle washing machine realizes a high level of automation. The water pressure and flushing time can be set according to user's actual requirements. The flushing water at each stage is recycled and filtered for downgrade usage, which helps reduce water consumption.
  • The conveyor is located on the side of the equipment, which greatly facilitates maintenance and repair.
  • The bottles are carried via crawler. They are soaked longer in water and more time is used to empty them after rinsing. Hence, there is no dead spot or residual water left in bottles. In addition, the adoption of intermittent rinsing style avoids cross contamination caused by continuous rinsing.
  • Due to the combination of bottle hook and the guide plate, bottles enter smoothly and reliably without collapse or overturn phenomenon.
  • To prevent bottle breakage or collapse as a result of long falling distance during exiting process, those bottles are received twice as there is a support to slightly receive bottles first for buffer purpose.
Main Technical Parameters
Model LJXA12 JXA20 JXA26 JXA30
Applicable size 50 ml, 100 ml, 250 ml and 500 ml 50 ml, 100 ml, 250 ml
Capacity 80-200 bottle/min 200-300 bottle/min 300-500 bottle/min 300-600 bottle/min
Number of bottles can be entered each time 12 20 26 30
Electric capacity 5.5 kW 6 kW 6 kW 6 kW
Water consumption Purified water: 80 ml/bottle injection water: 100 ml/bottle 0.2 MPa
Outer dimension (mm) 4275X2838X1600 3850X3920X1600 3850X4520X1600 3850X4550X1600
Note: In the above table, the capacity is inversely proportional to the bottle size. Hence, the bigger the bottle size, the lower the capacity. The specific details are correct based on the tender documents.

IVEN Pharmatech is an experienced fine bottle washing machine manufacturer and supplier in China. We provide various types of products such as ultrasonic bottle washing machine, IV solution bag belt conveyor, and co-extrusion non-PVC IV bag film production line.
