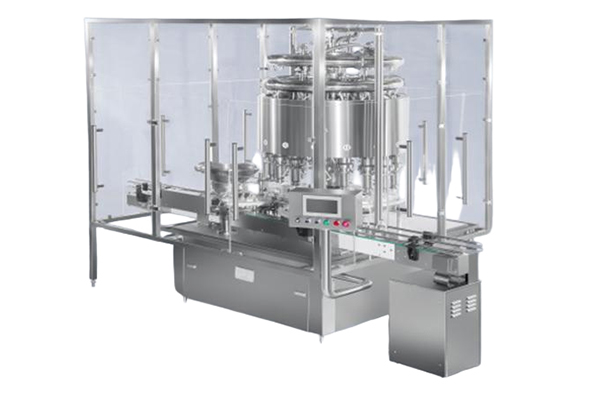

Vacuum Nitrogen Filling and Stoppering Machine

Vacuum Nitrogen Filling and Stoppering Machine

The vacuum nitrogen filling and stoppering machine is mainly used for vacuuming, nitrogen filling and stoppering of glass IV solution products. With a high level of automation, the equipment can adjust the vacuuming time, nitrogen filling time as well as the frequency of vacuuming and nitrogen filling according to the actual requirements.

Request a Quote
Performance Characteristics
  • The vacuum nitrogen filling and stoppering machine uses high capacity electromagnetic hopper, which ensures larger feeding quantity per time, thus helping reduce the labor intensity.
  • The machine adopts microcomputer frequency modulator for frequency and speed adjustments. Within the rated capacity range, the production capacity can be regulated by stepless speed control.
  • It is equipped with bottleneck positioning units, achieving good centering. As bottles enter continuously and smoothly, the machine offers high efficiency.
  • The machine features vacuum stoppering and mechanical positioning. After rubber stoppers are in the accurate place, the stoppering operation can be carried out, ensuring high qualification rate.
  • The vacuum nitrogen filling and stoppering equipment attains a low residual oxygen level below 1.0 % after vacuuming and stoppering.
Main Technical Parameters
Applicable Size 100 ml, 250 ml, 500 ml glass bottle, T rubber stopper
Capacity 80-120 bottle/min (vacuum nitrogen filling)
Stopper Supplying Heads 16,
Nitrogen Filling Heads 16
Vacuuming Heads 16
Electric Capacity 3.5 kW AC 380 50 Hz
Nitrogen Pressure 0.03-0.05 MPa
Nitrogen Consumption 40-50 ml/bottle
Vacuum Pump Air Suction Amount more than 200 m³/hour
Air Suction Pressure about 33 mbar
Residual Oxygen less than 1.0%
Stoppering Qualification Rate 99%

IVEN Pharmatech is a professional vacuum nitrogen filling and stoppering machine manufacturer in China. The wide range of products we offer includes liquid filling, nitrogen filling and stoppering machine, glass bottle unloading machine, vials filling and sealing machine, and more.
