Blister Packaging Machine

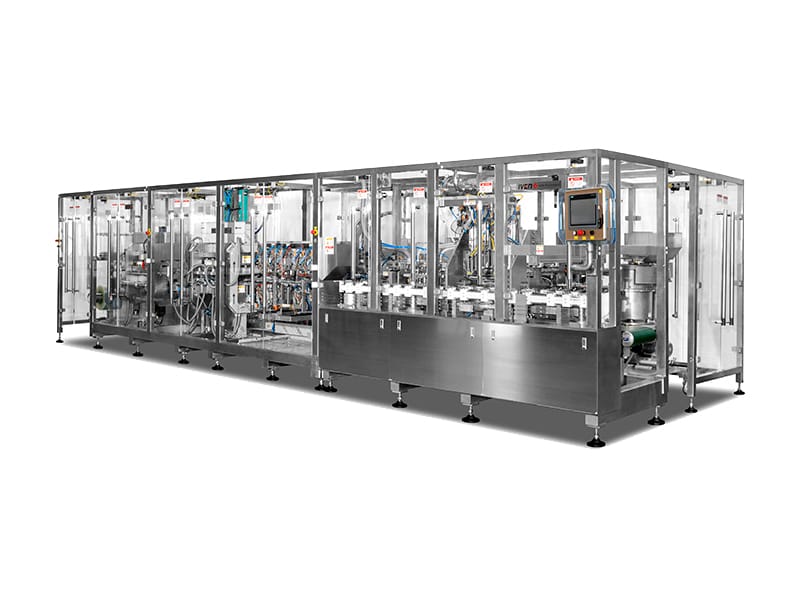

Blister Packaging Machine

Blister packaging machine is suitable for packaging disposable medical products like disposable syringe, syringe needle, infusion set, medical treatment and public health consumables. It is characterized by high production efficiency, high stability, good sealing effect and so on.

Request a Quote
Technical specs
Items Parameters
Max. Packaging width 400mm
Min. Packaging width 19mm
Max. Packaging length 415mm
Max. Packaging thickness 50mm
Molding cycle 4-6s
Film width 421±1mm
Blister paper width 415mm
Rated gas consumption ~700NL/min
Rated air pressure 0.6-0.8MPa
Cooling water consumption ~ 80L/h (< 25℃)
Power supply 380V/50Hz
Max. Power 10kw
Weight About 2 tons
Overall size (L*W*H) 10500*1100*1700mm
Main features
  • Guide pillar spacing is enlarged from 110mm to 300mm, greatly enhancing the stability of heat seal process.
  • Blister and heat-seal devices are driven by screw. Mould changing is simple and fast.
  • Cutter structure is improved to efficiently enlarge the life span of cutter and produce more even cut.
  • Operating lever is manufactured with aluminum alloy extrusions, of reasonable structure, beautiful appearance and durability.
  • Delivery roller is applied to transfer the film, offering more stable conveying and higher running stability.
  • Impregnated paper has good dialysis performance, helpful for the volatilization of residual gas after sterilization.
