Rapid Mixer Granulator

Rapid Mixer Granulator

Rapid mixer granulator can be used to process wet powder into required granules or smash lumpy dry material into granules. It is widely applicable to pharmacy industry.

Technical specs
  • With the using of fluidization granulating, the produced granule is nearly spherical in shape and has good fluidity.
  • Rapid mixer granulator is suitable for dry or wet mixing granulation. Simple technological process: the whole granulation process is completed in one closed container. Conforms to GMP standard.
  • Wide applications: the granulator is ideal for granulation of different viscosities and grain diameters.
Request a Quote
Technical specs
Model IV30 IV50 IV100 IV150 IV200 IV300 IV400 IV600 IV800 IV1000 IV1200
Material tank Total volume, L 29 53 110 175 210 345 410 620 802 1005 1295
Working volume L 8-21 15-40 35-85 55-140 65-165 105-275 125-325 190-495 240-640 250-700 390-1035
Drive system Agitator speed r.p.m 30-500 25-400 8-250 6-202 6-202 5-170 5-170 4-149 4-126 3-126 3-103
Motor power kW 5.5 5.5 11 15 15 22 22 30 37 45 55
Cutter speed r.p.m 300-2800 150-1400
Motor power kW 1.5 1.5 4 5.5 5.5 7.5 7.5 11 11 15 15
Overall size Length mm 2110 2110 1850 1950 1950 2300 2300 2500 2700 2700 3000
Height mm 1600 1600 2700 2700 2700 2950 2950 3000 3200 3200 3300
Discharging port height mm 800 800 700 700 700 800 800 800 800 900 900
Discharging port widthmm 700 700 870 950 950 1130 1130 1300 1330 1480 1580
Weight kg 400 450 1200 1500 1650 1850 2200 2500 2700 3600 4500
Related Pharmaceutical Machinery
Looking for Turnkey Pharmaceutical Processing Solutions?

Our specialists are here to support your pharma projects from start to finish.

E-mail charlene@pharmatechcn.com
Mobile +86-13916119950
  • Other Pharmaceutical Machinery
  • Other Products

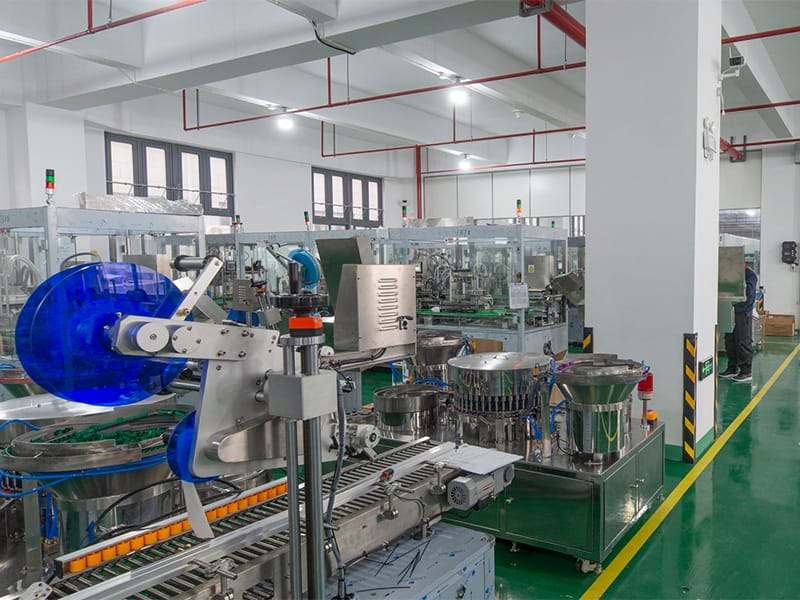

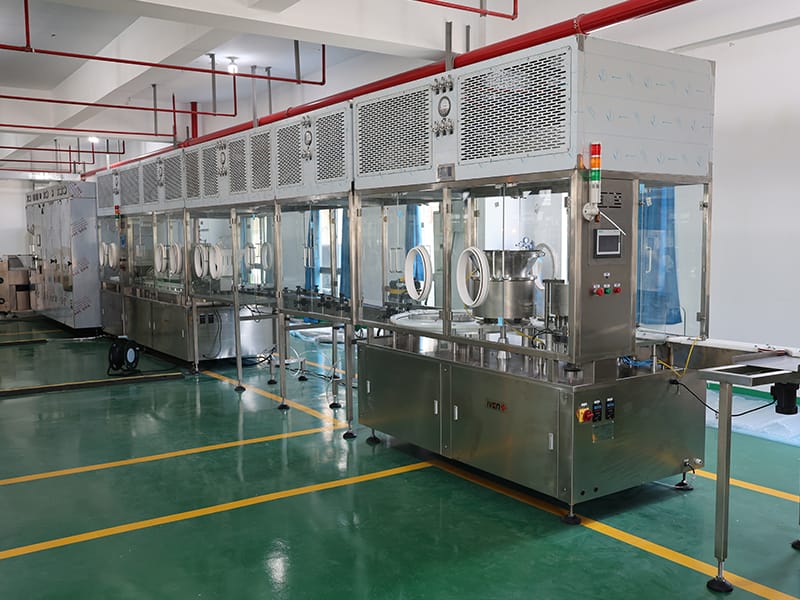

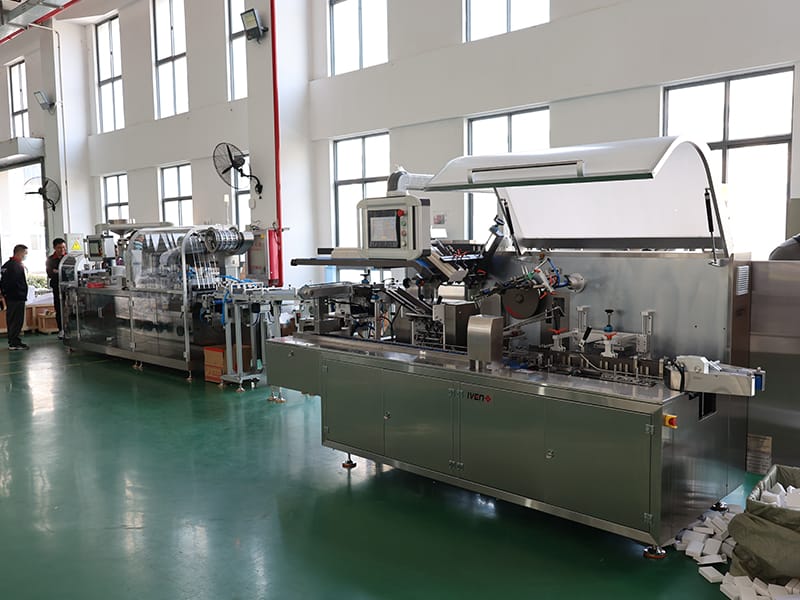

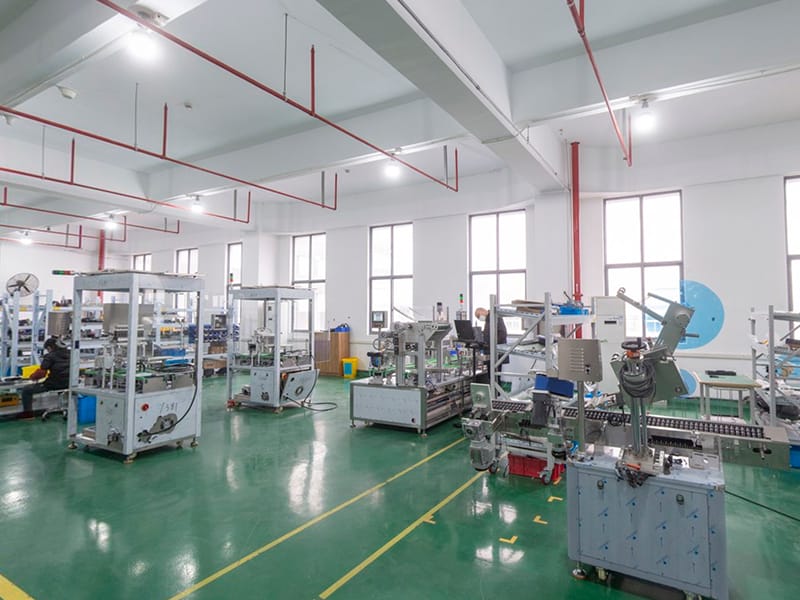

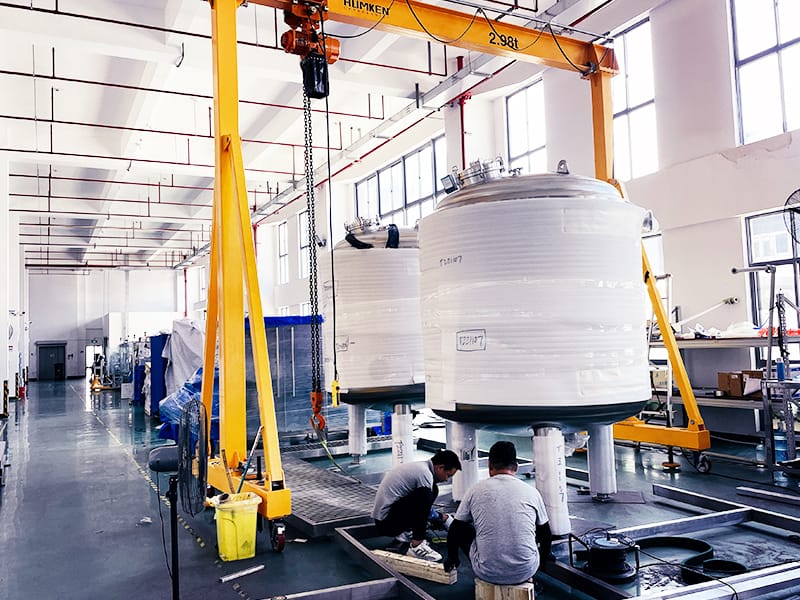

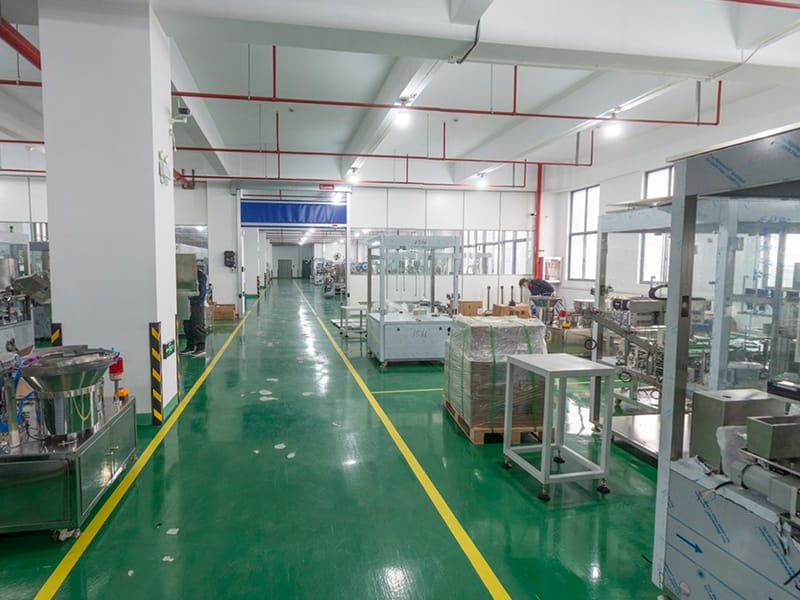

Factory
