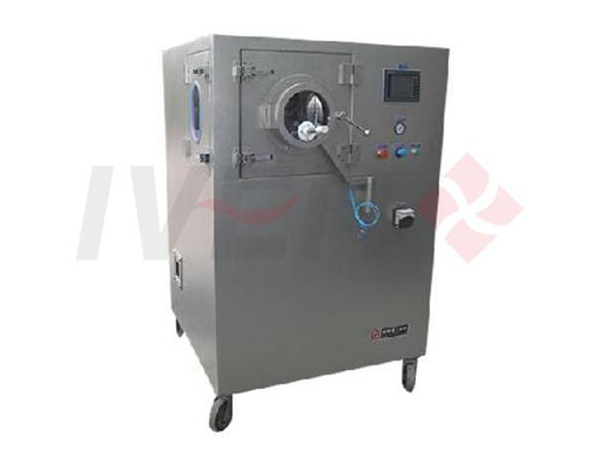

Tablet Coater

Tablet Coater

The tablet coater is designed and produced to coat tablets, pills, candies, etc. It is widely applied in pharmaceutical and food operations. The coater adopts mechanical-electrical integration, providing high efficiency, safety, and cleanliness.

Request a Quote
Technical specs
Model IVEN-600C IVEN-350C IVEN-150C IVEN-75C IVEN-10C
Capacity (kg/time) 600 350 150 75 10
Pan speed (rpm) 2-10 2-11 2-15 4-19 6-30
Main motor power (kW) 5.5 4 2.2 1.1 0.55
Hot air temperature range (℃) Room temperature~80℃
Hot air filter precision (μm) 0.5μm (class 100000)
Motor power of hot air machine (kW) 5.5 2.2 1.1 1.1 0.75
Motor power of exhaust machine (kW) 15 7.5 5.5 3 2.2
Motor power of dust collector (kW) 0.37 0.37 0.37 0.37 0.37
Motor power of peristaltic pump (kW) 0.18 0.18 0.18 0.18 0.18
Dimensions of main machine (L*W*H) (mm) 2000*2240* 2330 2000*1560* 2300 1570*1260* 2000 1350*1010* 1630 1100*750*1540
Weight (kg) 2500 1650 900 550 380
Main features
  • Mechanical-electrical integration design: control system comprises PLC and HMI, of flexible programmability to adapt to different requirements of pharmaceutical processes.
  • The phenomenon of falling and crashing of tablet core like pallet, pill or plain tablet can be efficiently eliminated. This avoids the occurrence of fragments and improves yield.
  • Coating film-saving design: guide plate has a narrow upper surface to avoid the adhesion and waste of coating films.
  • Spray gun adopts a special design of clogging-cleaning structure, exerting continuous coating capacity, high coating efficiency and coating film saving. Also, the spray gun features uniform atomization and large spray area, due to the using of a universal spray nozzle. This is not affected by loading amount of coating films.
  • Conforms to GMP standards.
