Lifting Turnover granulator

Lifting Turnover granulator

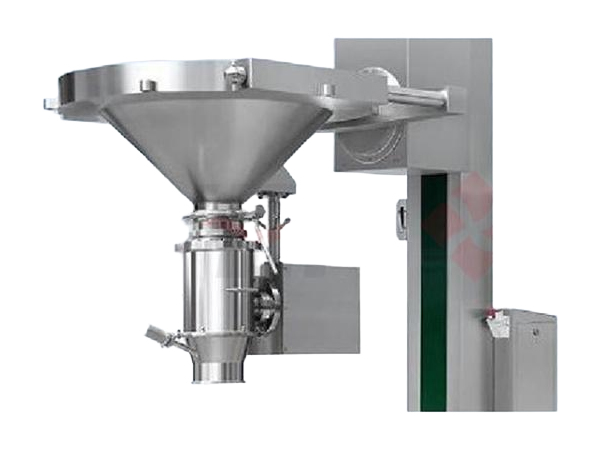

The lifting turnover granulator is intended for the transfer and adding of materials in the pharmaceutical industry. It can cooperate with fluid bed processors. The dried or granulated materials discharge from the fluid bed processor and enter this lifting turnover granulator for dry granulation. Then it is transferred to a mixing hopper or screening machine.

Request a Quote
Technical specs
Model IVEN-50-TZ IVEN-100-TZ IVEN-150-TZ IVEN-200-TZ IVEN-300-TZ IVEN-400-TZ IVEN-500-TZ IVEN-600-TZ IVEN-800-TZ IVEN-1000-TZ IVEN-1200-TZ
Max. Lifting capacity (kg) 100 100 150 200 300 400 500 600 800 1000 1000
Total motor power (kW) 1.3 1.3 5 5 6 6 6 6 8 8 8
Granulator model FZ-100 FZ-100 FZ-450 FZ-450 FZ-700 FZ-700 FZ-700 FZ-700 FZ-1000 FZ-1000 FZ-1000
Max. Granulating capacity (kg/h) 100 100 450 450 700 700 700 700 1000 1000 1000
Weight (kg) 500 500 500 550 650 750 800 800 900 1000 1100
Main features
  • Integrative technique of mechanics-electronics-hydraulics: offers compact structure, safety, and reliability.
  • Cone hopper on lifting frame: it is specially designed depending on the material container of granulator to feed materials independently, with no manual handling.
  • Continuous operation of finished granule discharging, drying granulation and transferring to mixing barrel reduces labor intensity for operators.
  • The whole process is conducted in a closed environment, preventing powder leakage and cross contamination in transfer process. Conforms to GMP standards.
