Dosing Machine

Dosing Machine

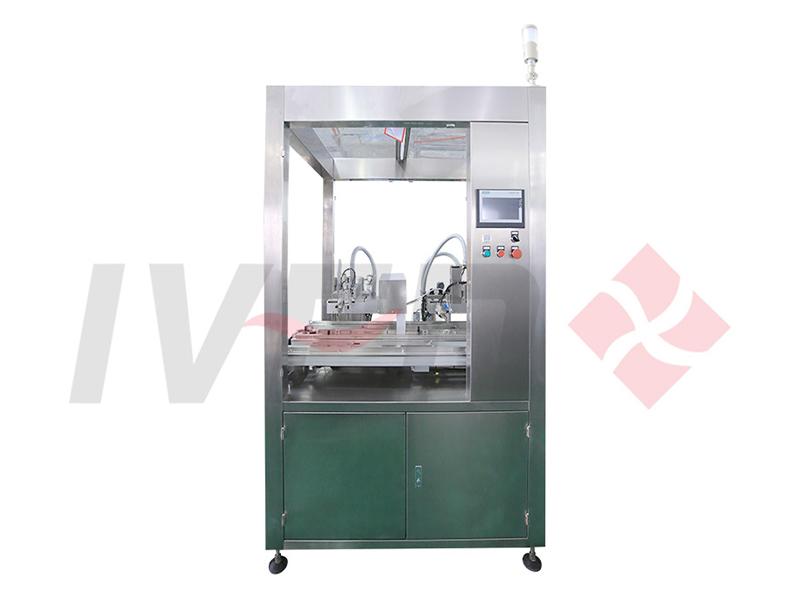

The dosing machine is used for automatic dosing of liquid reagents into blood collection tubes. Different dosing machines are available for different product needs. This machine is specially designed for the pharmaceutical industry.

Request a Quote
Technical Specs
Capacity 15,000-20,000 pcs/h
Filling head 5 nozzle
Filling accuracy Anti-coagulant: ≤5%； Procoagulant:≤6%; Large dose:≤5%
Applicable tube size Diameter 13mm ( Height 75mm or 100mm)
Compressed air consumption ≤ 100L / minute, 0.5mpa≤P≤0.8Mpa
Power supply AC 380V 50Hz
Power 0.7Kw
Overall size (L*W*H) 1200*1200*2000 mm
Weight 400kg
Main Features
  • A unique tube falling device avoids collision between tubes, preventing damage to the outer wall and tube labels.
  • Detection for tube dropping, clogging and reverse tube ensures safe, stable, and efficient machine operation.
  • The supporting auxiliary tube managing box automatically transfers the managed tubes into material barrel, reducing labor.
  • Filling dosage is adjustable through the touch screen, and is easy to operate. A drying device is optional.
  • A high precision and high stability ceramic pump filling process is used. The precision is up to 1% and will not be affected by pressure, voltage, time, or other factors.
  • An automatic alarm function enables real-time monitoring of production status.
