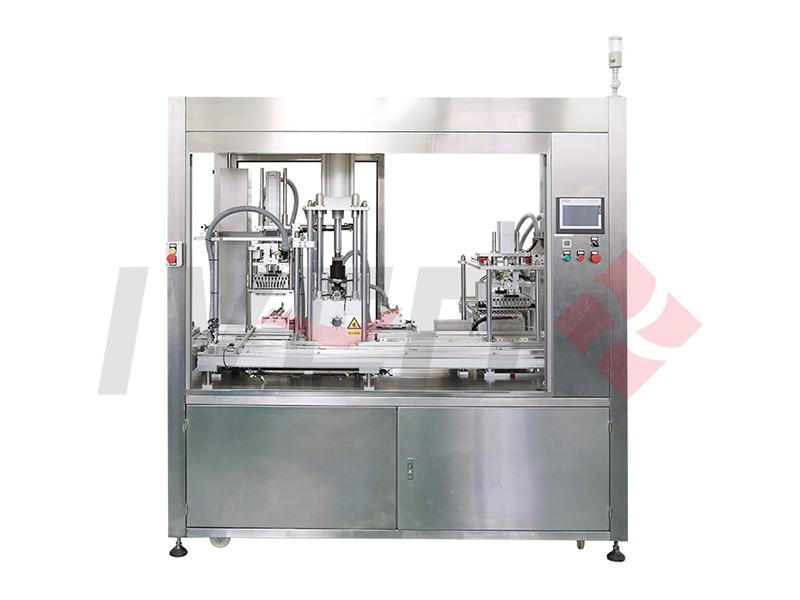

Inline Liquid Filling Machine

Inline Liquid Filling Machine

The inline liquid filling machine is used for capping, vacuumizing and tray loading during the production of blood collection tubes. With a high degree of integration, a small floor space, a high production efficiency, and a stable, reliable operation, this machine is popular within the pharmaceutical industry.

Request a Quote
Technical Specs
Capacity 15,000-18,000 pcs/h
Vacuum range 0 ~ -99.9kPa
Compressed air consumption ＜100L /min, 0.5-0.8Mpa
Power supply AC 380V / 50Hz
Power 0.7Kw
Overall size (L*W*H) 2000*1200*2000 mm
Equipment Features
  • The cap and stopper feeding area is set with a buffer zone to provide high feeding efficiency. The unique cap picking and distance adjustment device allows for a smoother and more stable capping process.
  • High efficiency vacuum pump and high precision proportioning control achieves a full control of the vacuum degree. The vacuum degree can be set directly on the touch screen or automatically in the system after choosing the atmospheric pressure of your location.
  • Trays come in staggered and matrix arrangement type, offering customers with wider choices.
