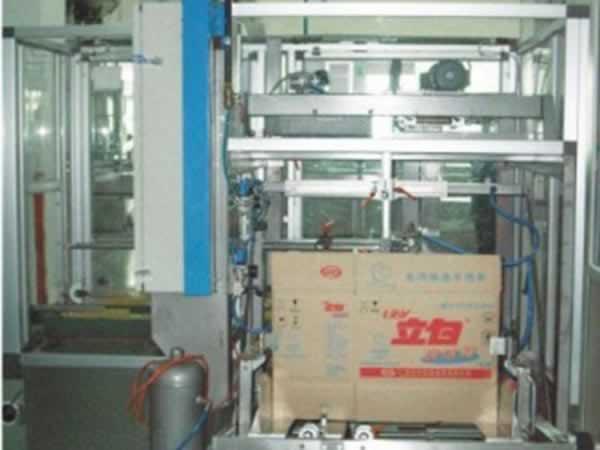

Automatic Carton Unfolding Machine

Automatic Carton Unfolding Machine

The BKX25 automatic carton unfolding machine can automatically carry out board conveying, carton unfolding, forming, bottom sealing and other processes. It enables packaging operations to be completed quickly, reliably and efficiently. The machine is mainly used in the light industry, food, medicine, cosmetics, liquor and other packaging industries.

Request a Quote
Main Technical Parameters
Capacity 20-25 carton/min
Working table height 650 mm
Carton dimension (L)200-450×(W)200-650× (H)100-350 mm
Machine dimension: (L)2000×(W)1500×(H)1950 mm
Machine weight 1000 kg
Air supply 120 L/min 0.5 Mpa
Power supply 380 V 1.5 kW
Performance Characteristics
  • The automatic carton unfolding machine uses imported control elements, which contribute to low failure rate and high safety.
  • It adopts human-machine interface for simple and convenient operation.
  • The machine can be quickly and simply adjusted to suit cartons of different specifications.
  • The carton unfolding equipment offers low power consumption and low noise during operation.
  • The use of adhesive tape for bottom sealing prevents the cartons from being affected by weather changes.
